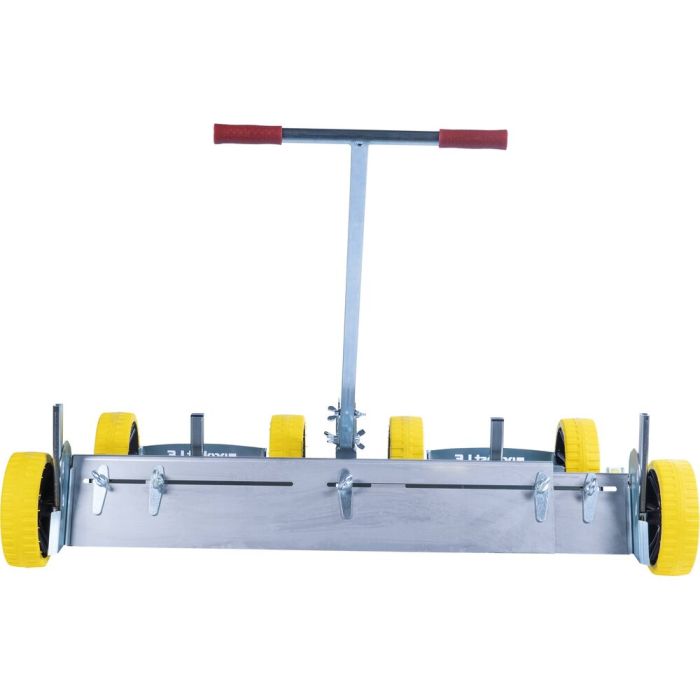

LEVELFIX LF-125/215 Manual Screeding System

The universal manual screeding system – move a large amount of material easily in a short time, on large wheels.

Availability


SKU
51000085
The LF system is an efficient tool for landscape contractors who are looking for a tool for spreading and also screeding bedding material for paved areas quickly, flexibly and precisely, while maintaining ergonomically sound posture.
Suitable for gardener for preparation of planting beds, lawn areas and similar. Also suitable for levelling wood chip or gravel paths.
Level surfaces can be created in a very short space of time and the process, which uses plastic wheels with flat rubber tread, which leave hardly any traces in the surface.


  • On both sides height adjustable wheels, with height indicator for adjusting the surface level to the kerb for instance. Adjustment range -40 / +170 mm (-1½ / +6¾ inch).
  • Adjustable roof profile integrated as standard: LF-75/125: 7%, LF-125/215: 4%, LF-170/310: 2.5 %.
  • Scraper sheets made from non-rusting stainless steel.
  • Cutter with sharp edge on the lower scraper edges allows materials to be excoriated even where there is compacted sand.
  • Lasting surface protection on all other components thanks to galvanic zinc plating.
  • Handle adjustable for optimum ergonomics.
  • Spirit level bubble fitted on the top right edge of the scraper sheet.
  • Second handle LF-HG for wide working width for 2 people operation for LF-170/310 available as an option.

See LF-75/125, but 2 x roller units.
Technical data
Metric values:
Dead Weight32 kg
Height Adjustable Range-40/+170 mm
Working Width1250-2150 mm
Imperial values:
Dead Weight71 lbs
Height Adjustable Range-1,57/6,69 in
Working Width49,21-84,65 in
