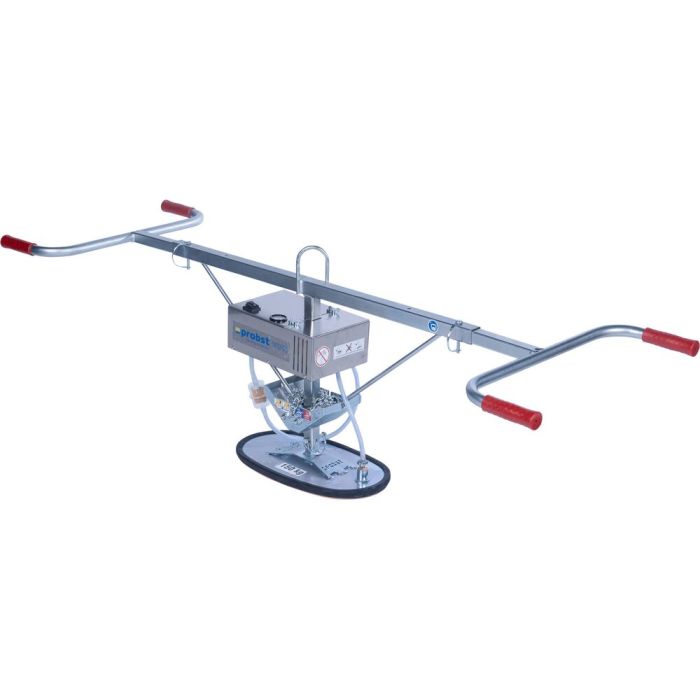

VACUUM-POWER-HANDY VPH 12 volt Vacuum Hand Laying Device

Flexible and powerful hand operated laying device for dense products, such as granite or high quality concrete elements.


Special seal, consisting of 2 components for optimised sealing. Even when the suction plate is sitting on sharp edges for a long time, no permanent marks are left in the seal. Therefore no “foldable rests” are necessary to save guard the seal. Wheel Set VPH-RS can be retrofitted to any VPH device at any time. Thus dense slabs can be installed by just one person.

Highly wear-resistant seal.
Powered by rechargeable battery 12 V. Special energy saving automatic allows a full day of laying operation without the need of recharging. Battery charger not included.
Handle for 2 men operation, handles are height and width adjustable to accomodate with different laying tasks.
Including suction plate with 150 kg load capacity.
The seal can be exchanged without glue and any tool within 1 minute.
Fitted as standard with chain compartment and load securing chain as well as lifting eye for hoist operation.
Durable surface protection by galvanizing.
Vacuum pump unit with manometer and battery charging indicator.
Technical data
Metric values:
Working Load Limit/WLL -500 mbar150 kg
Weight Dead Weight16,5 kg
Type of Drive electric/Battery0,02 kW
Dimensions LxWxH590x588x1431 mm
Dimensions oval, LxB440x250 mm
Working Voltage12 V
Battery Capacity7,2 Ah
Imperial values:
Working Load Limit/WLL -500 mbar331 lbs
Dead Weight36 lbs
Type of Drive electric/Battery0,02 kW
Dimensions LxWxH23,25x23,25x56,25 in
Dimensions oval, LxB17,32x9,84 in
Working Voltage12 V
Battery Capacity7,2 Ah
