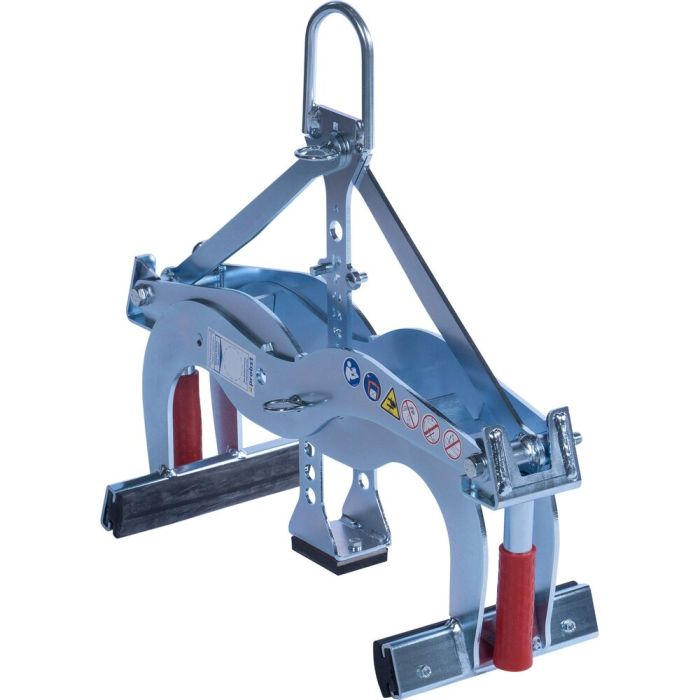

EASYGRIP EXG-MAXI Border Stone Handle
The mechanical pliers EASYGRIP EXG grips parallel, flat and non-tapered concrete elements and is still small, light and handy.
Availability
SKU
53100392
Small, lightweight, easy to handle but nonetheless ultra-strong!
EASYGRIP EXG is a mechanical grab suitable for handling parallel, plane and non-conical concrete elements, such as border stones, slabs, block steps and kerb stones.
With larger gripping range and height-adjustable support as standard.
- The compact and lightweight EASYGRIP EXG can be attached to a carrier (loading crane, mini-excavator etc.) by means of hoisting belts or chains. Thus just one person is able to operate the grab mechanically.
- The grab comes with two handles and thus is also suitable for a two-man manual operation.
| Metric values: | ||
|---|---|---|
| Working Load Limit/WLL | 600 kg | |
| Dead Weight | 16 kg | |
| Gripping Range | 0-400 mm | |
| Length of Gripper | 235 mm | |
| Inside Height | 165-215 mm | |
| Imperial values: | ||
| Working Load Limit/WLL | 1323 lbs | |
| Dead Weight | 35 lbs | |
| Gripping Range | 0,00-15,75 in | |
| Length of Gripper | 9,25 in | |
| Inside Height | 6,50-8,46 in | |
