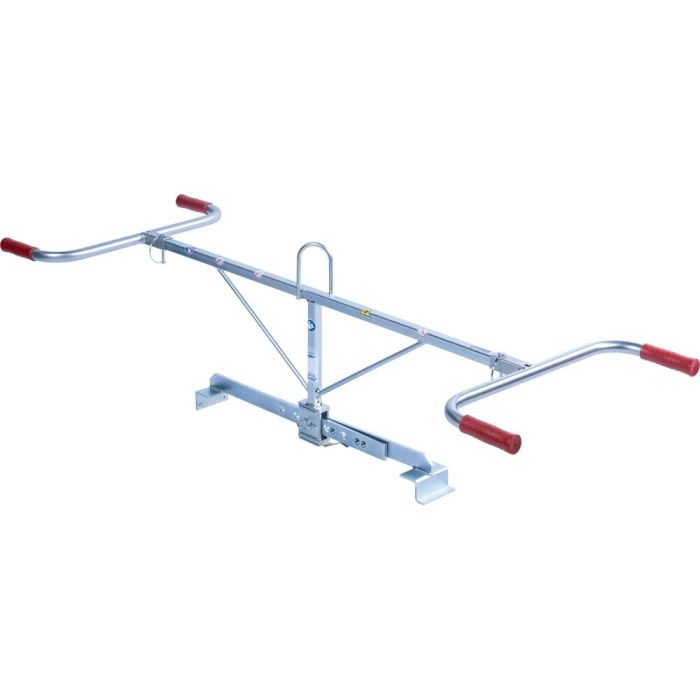

SlabHANDLER™ VZ IS Steel Gripper Laying Clamp
Especially suitable for handling concrete kerb stones.
Availability
SKU
53100140
The smaller SlabHANDLER VZ IR, VZ IS, and VZ II can be lifted by two workers or by construction equipment. Lift products quickly and safely without rigging. With three options available and an opening range between 20“ to 67“ (51-170 cm), the SlabHANDLER can be used for multiple applications. This versatile tool is great for job site placement of slabs and precast or granite curbing.
- The one-sided angular supports which are placed on the kerb stone already in place enable an extremely narrow joint.
- Grips longitudinally so that it can be used in tightest spaces.
- No deflection of the plumb line.
- All models are equipped with a lifting eye.
- Durable surface protection by galvanizing.
| Metric values: | ||
|---|---|---|
| Working Load Limit/WLL | 100 kg | |
| Dead Weight | 11,3 kg | |
| Gripping Range | 500-1045 mm | |
| Length of Gripper | 100 mm | |
| Inside Height | 40 mm | |
| Imperial values: | ||
| Working Load Limit/WLL | 220 lbs | |
| Dead Weight | 25 lbs | |
| Gripping Range | 19,69-41,14 in | |
| Length of Gripper | 3,94 in | |
| Inside Height | 1,57 in | |
