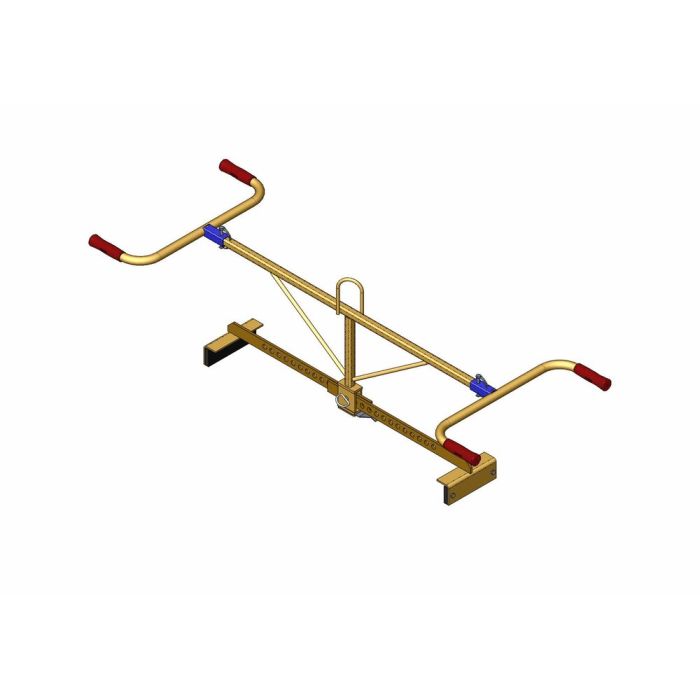

SLABHANDLER VZ Laying Clamp

Especially suitable for handling concrete kerb stones.

Availability


SKU
53100198

The smaller SlabHANDLER VZ IR, VZ IS, and VZ II can be lifted by two workers or by construction equipment. Lift products quickly and safely without rigging. With three options available and an opening range between 20“ to 67“ (51-170 cm), the SlabHANDLER can be used for multiple applications. This versatile tool is great for job site placement of slabs and precast or granite curbing.


The smaller SlabHANDLER VZ Ir, VZ-Is (metric) and VZ II can be lifted by two workers or by construction equipment. Lift products quickly and safely without rigging. With three options available, and an opening range between 20 to 39 in (51 - 99 cm), the SlabHANDLER can be used for multiple applications. This versatile tool is great for jobsite placement of slabs and precast or granite curbing.




The one-sided angular supports which are placed on the kerb stone already in place enable an extremely narrow joint.
Grips longitudinally so that it can be used in tightest spaces.
No deflection of the plumb line.
All models are equipped with a lifting eye.
Durable surface protection by galvanizing.

Technical data
Metric values:
Working Load Limit/WLL100 kg
Dead Weight12 kg
Gripping Range250-980 mm
Length of Gripper200 mm
Inside Height60 mm
Imperial values:
Working Load Limit/WLL220 lbs
Dead Weight26 lbs
Gripping Range9,84-38,58 in
Length of Gripper7,87 in
Inside Height2,36 in
