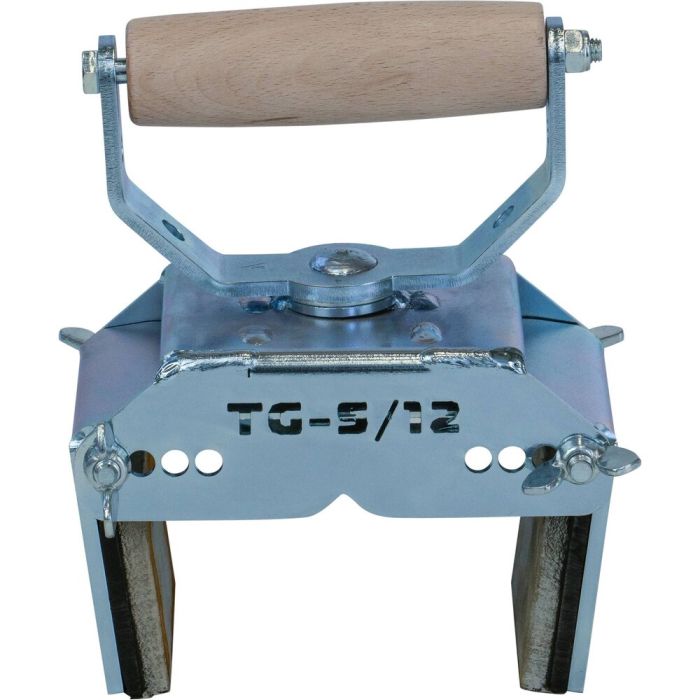

TWISTGRIP TG-5/12 Kerb and Strip Stone handle

Powerful grip with a simple turn of the handle.

Availability


SKU
53200102
Basic model TG-5/12: virtually provides kerb and border stones with a “handle”.


Can be set to any grip width from 5 to 12 cm in seconds, without using a tool.
It takes only 2.5 turns to achieve a full working load limit.
Compact dimensions, low machine weight.
Non-damaging grip thanks to highly wear-resistant, replaceable rubber elements.
Technical data
Delivery statusGrün
Metric values:
Working Load Limit/WLL80 kg
Dead Weight3 kg
Gripping Range50-120 mm
Length of Gripper90 mm
Inside Height60 mm
Imperial values:
Working Load Limit/WLL176 lbs
Dead Weight6,61 lbs
Gripping Range1,97-4,72 in
Length of Gripper3,54 in
Inside Height2,36 in
